When it comes to ensuring the safety, durability, and efficiency of electrical installations, the humble Cable Gland plays a critical role.

Whether you’re working in industrial automation, oil and gas, telecommunications, or renewable energy, choosing the right cable gland can make all the difference in the performance and longevity of your systems.

In this article, we’ll explore everything you need to know about cable glands, including their functions, types, applications, material options, installation tips, and how to select the best solution for your needs.

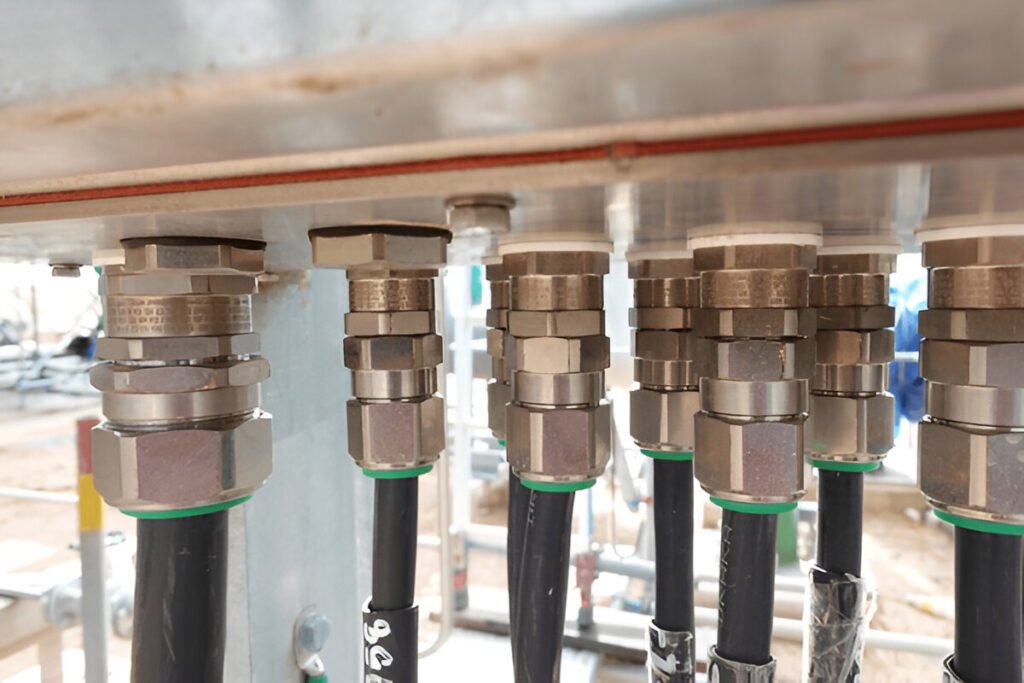

What is a Cable Gland?

A Cable Gland-sometimes called a cable connector, cable fitting, or cable entry device-is a mechanical device designed to attach and secure the end of an electrical cable to the equipment. Its primary functions are to provide strain relief, ensure a secure connection, maintain ingress protection (IP rating), and, in some cases, offer grounding or earthing for armored cables.

Cable glands are essential for both indoor and outdoor electrical installations. They protect sensitive components from dust, moisture, chemicals, and mechanical stress, ensuring the safe and reliable operation of electrical systems.

Key Functions of Cable Glands

1. Mechanical Fixing and Strain Relief
   Cable glands firmly anchor the cable to the equipment, preventing accidental pull-out, twisting, or movement that could damage the cable or connections.
2. Ingress Protection (Sealing)
   High-quality cable glands provide a tight seal around the cable entry, blocking the entry of dust, water, oil, and other contaminants. This is especially important for outdoor, marine, and industrial environments.
3. Electrical Safety
   For armored or shielded cables, certain cable glands provide grounding or earthing, helping to dissipate stray electrical currents and prevent electrical faults.
4. Environmental Protection
   With varying IP ratings (such as IP68 or IP69K), cable glands can withstand harsh conditions, including submersion, high-pressure cleaning, or exposure to corrosive substances.

Types of Cable Glands and Their Applications

Choosing the right cable gland depends on your specific application, cable type, and environmental conditions. Here are some of the most common types:

1. Metal Cable Glands

• Materials: Brass, stainless steel, aluminum
• Applications: Industrial machinery, outdoor installations, hazardous locations
• Features: High mechanical strength, corrosion resistance, suitable for armored and unarmored cables

2. Plastic Cable Glands

• Materials: Nylon (Polyamide), PVC
• Applications: General industrial use, indoor environments, control panels
• Features: Lightweight, corrosion-resistant, cost-effective, suitable for non-armored cables

3. Explosion-Proof Cable Glands (Ex Cable Glands)

• Applications: Oil & gas, mining, chemical plants, hazardous areas
• Features: Prevent the transmission of sparks or flames, certified for use in explosive atmospheres

4. EMC Cable Glands (Electromagnetic Compatibility)

• Applications: Data centers, communication systems, automation
• Features: Shield against electromagnetic interference, maintain signal integrity

5. Waterproof Cable Glands

• Applications: Outdoor lighting, marine equipment, renewable energy installations
• Features: High ingress protection (IP68/IP69K), excellent sealing against water and dust

How to Choose the Right Cable Gland

Selecting the ideal cable gland involves considering several factors:

• Cable Type: Is it armored, non-armored, or shielded?
• Cable Diameter: The gland must match the cable’s outer diameter for a secure fit.
• Installation Environment: Indoor, outdoor, hazardous, wet, or corrosive environments require different protection levels.
• Material Requirements: Choose between metal (for strength and durability) and plastic (for corrosion resistance and cost-effectiveness).
• Ingress Protection Rating: Higher IP ratings (like IP68) are essential for wet or dusty environments.
• Special Requirements: Do you need explosion-proof, EMC, or high-temperature resistance?

Cable Gland Material Options

Metal Cable Glands

• Brass: Excellent for industrial and outdoor use, offers high strength and corrosion resistance.
• Stainless Steel: Ideal for corrosive or marine environments, highly durable.
• Aluminum: Lightweight and strong, suitable for specific industrial applications.

Plastic Cable Glands

• Nylon (Polyamide): Lightweight, resistant to chemicals and UV, suitable for most indoor and some outdoor applications.
• PVC: Cost-effective, used in less demanding environments.

Installation Tips for Cable Glands

Proper installation is crucial for ensuring the effectiveness of your cable gland. Here are some key steps:

1. Select the Correct Size: Ensure the gland matches the cable’s outer diameter.
2. Prepare the Cable: Strip the cable sheath according to the manufacturer’s instructions.
3. Insert the Cable: Pass the cable through the gland body and any sealing inserts.
4. Tighten the Gland: Use the recommended torque to secure the gland, ensuring a tight seal without damaging the cable.
5. Check the Seal: Verify that the gland is properly sealed and provides the required ingress protection.
