Description
Thread length : Short thread is suitable for opening holes in thin boards or devices with internal threads, long thread is suitable for joining thick boards, and extended thread can be customized.
The Metal Cable Gland is a cable matching product. The connector cable can be locked, and the other end of the device can enter the device through the box, or you can choose the threaded entry according to the inlet and outlet of the internal thread of the electrical equipment.

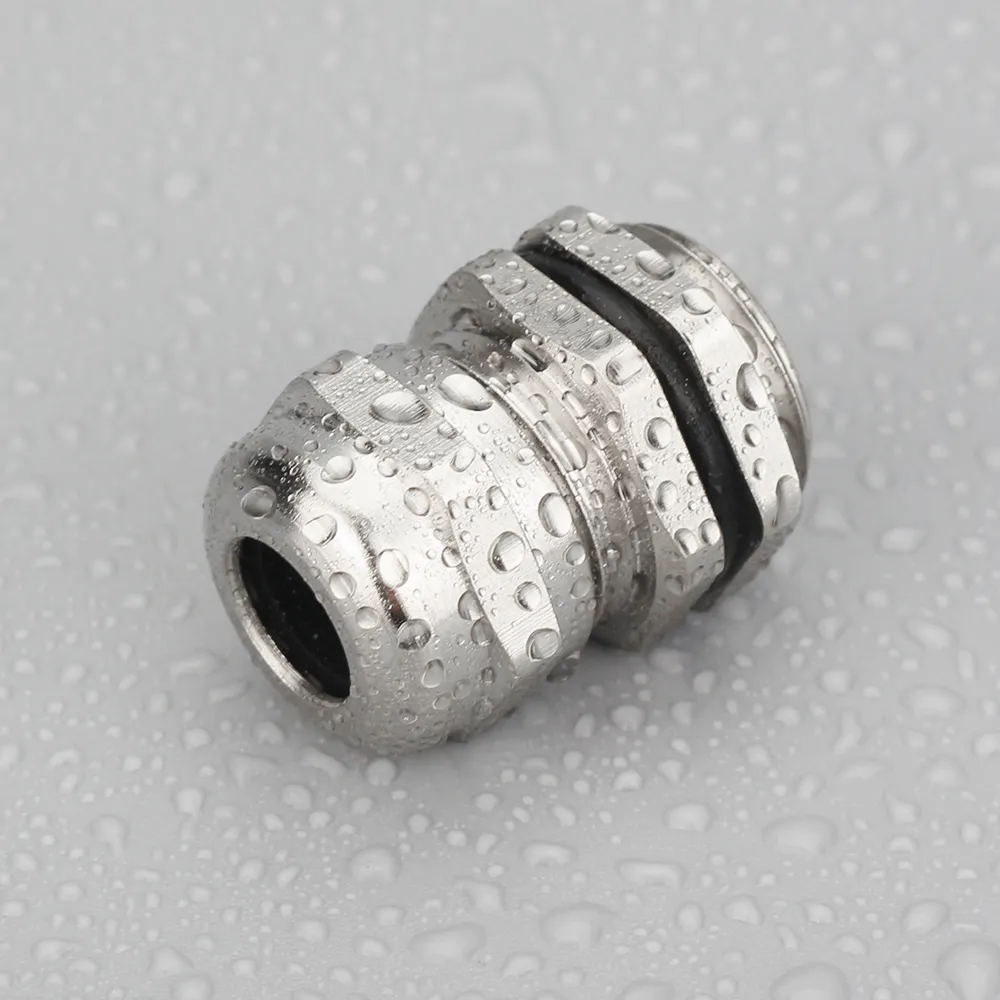

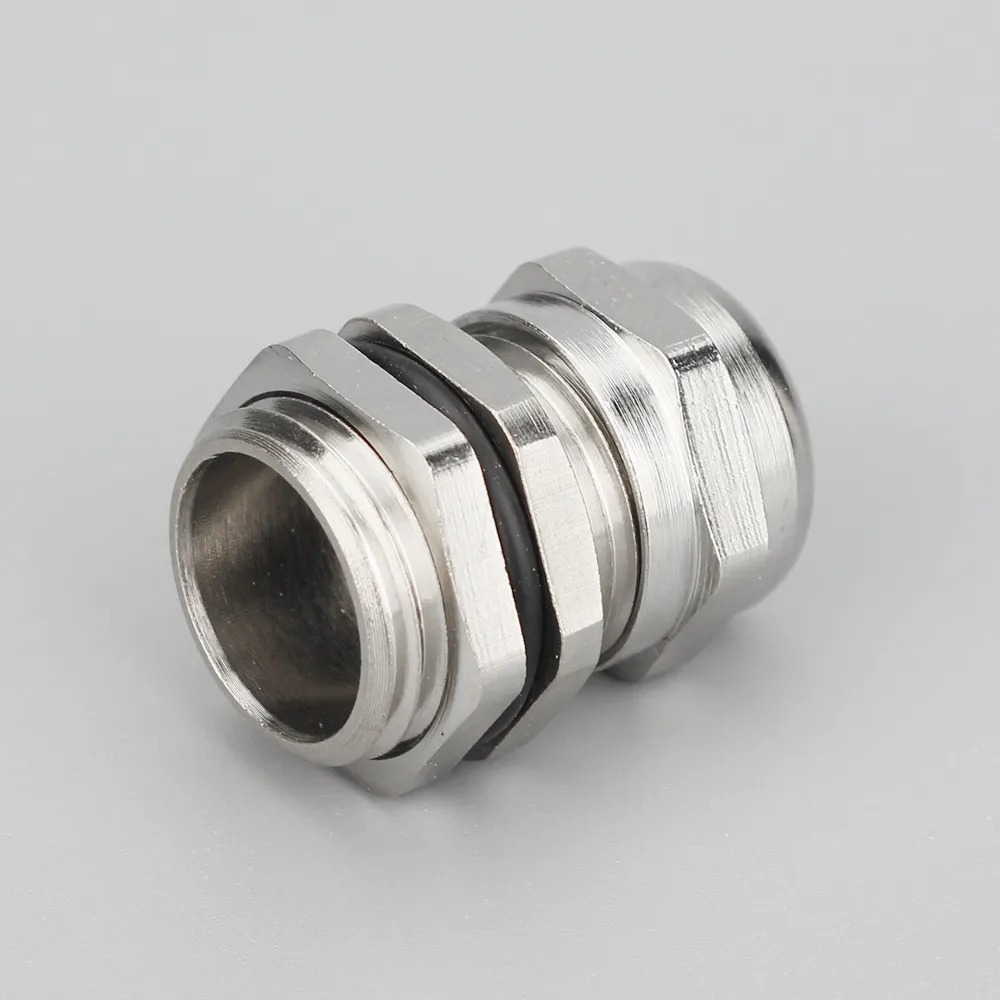

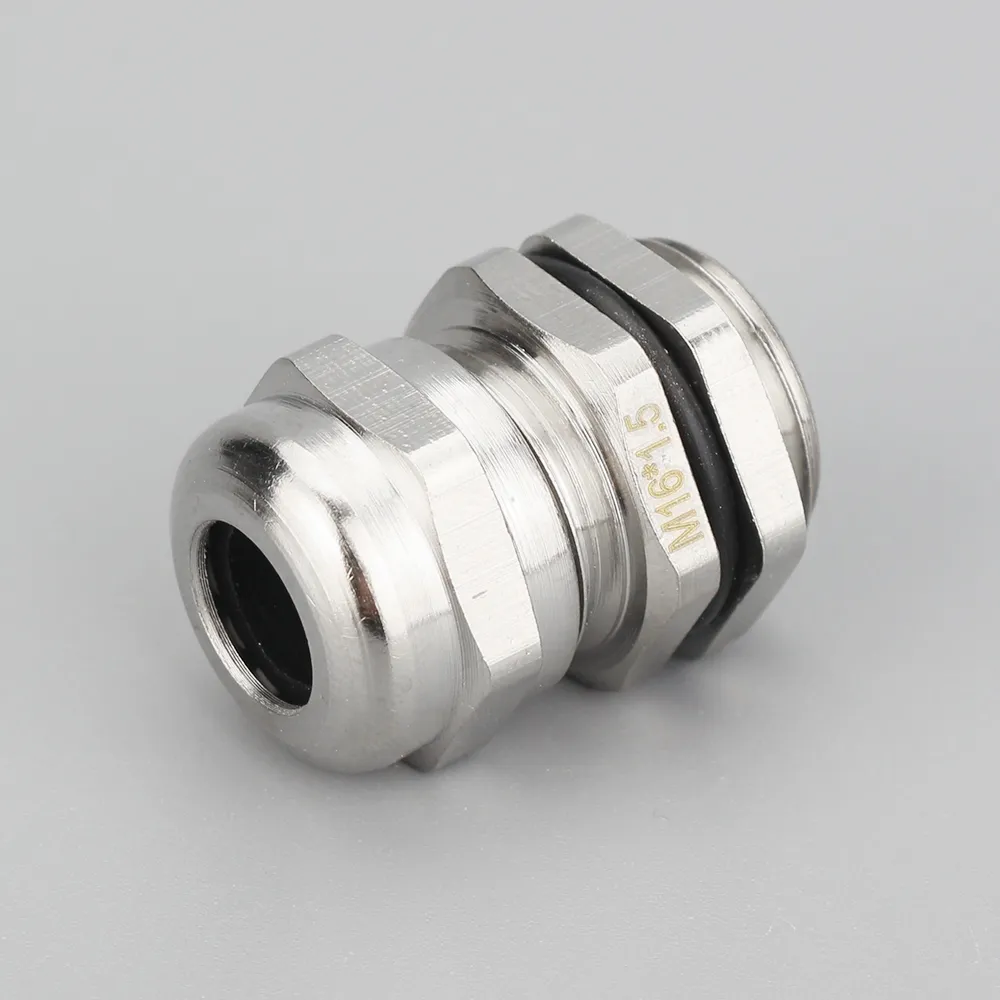

This metal cable gland serves as a complementary accessory for cables, designed with one end that securely locks the cable in place, while the other end connects to equipment either through a junction box or via a threaded entry that matches the device’s internal threading. The main body of the gland is made from nickel-plated brass, ensuring excellent corrosion resistance and durability. The clamping components are crafted from nylon plastic, and sealing elements including O-rings are made from nitrile rubber, providing smooth, glossy surfaces with strong pressure resistance and flexibility. This combination results in a product free of unpleasant odors, featuring superior waterproof, rustproof, and corrosion-resistant properties. The brass gland offers tight connections and strong conductivity, facilitating quick and easy assembly.
Widely applied across various environments, these waterproof cable glands exhibit high tensile strength and reliably maintain cable connections under conditions involving water, dust, salt, acids, alkalis, alcohols, oils, and common solvents. Their expanding use spans both indoor and outdoor settings. In practical cable installations, disconnected lines must be rejoined to restore transmission functionality. Traditional cable glands lacking waterproof features often lead to high maintenance costs and compromised safety. To address these challenges, waterproof cable glands have been developed to ensure stable connection and transmission even in harsh environments.
Parameter table
Metric thread type
| Model | Thread AG | Cable Range (mm) | Thread O.D (mm) | Mounting Hole Diameter(mm) | Thread length GL(mm) | Bonding length (mm) | Spanner Size (mm) |
| M14-NP | M14×1.5 | 8-4 | 14 | 14-14.2 | 7 | 19 | 17 |
| M16-NP | M16×1.5 | 8-4 | 16 | 16-16.2 | 8 | 20 | 18 |
| M18-NP | M18×1.5 | 10-5 | 18 | 18-18.2 | 8 | 21 | 20 |
| M20-NP | M20×1.5 | 12-6 | 20 | 20-20.2 | 8 | 22 | 22 |
| M22-NP | M22×1.5 | 14-10 | 22 | 22-22.2 | 8 | 23 | 24 |
| M24-NP | M24×1.5 | 14-10 | 24 | 24-24.2 | 9 | 25 | 24/27 |
| M25-NP | M25×1.5 | 14-10 | 25 | 25-25.2 | 9 | 25 | 24/27 |
| M28-NP | M28×1.5 | 18-13 | 28 | 28-28.2 | 9 | 27 | 30 |
| M30-NP | M30×1.5 | 18-13 | 30 | 30-30.2 | 9 | 29 | 30/32 |
| M32-NP | M32×1.5 | 22-15 | 32 | 32-32.2 | 10 | 29 | 35 |
| M33-NP | M33×1.5 | 22-15 | 33 | 33-33.2 | 10 | 29 | 35 |
| M36-NP | M36×1.5 | 25-18 | 36 | 36-36.2 | 10 | 31 | 40 |
| M37-NP | M37×1.5 | 25-18 | 37 | 37-37.2 | 10 | 31 | 40 |
| M40-NP | M40×1.5 | 25-18 | 40 | 40-40.2 | 11 | 31 | 40/45 |
| M42-NP | M42×1.5 | 30-22 | 42 | 42-42.2 | 11 | 35 | 45 |
| M48-NP | M48×1.5 | 33-25 | 48 | 48-48.2 | 11 | 37 | 50/52 |
| M50-NP | M50×1.5 | 38-32 | 50 | 50-50.2 | 12 | 37 | 57/55 |
| M63-NP | M63×1.5 | 44-37 | 63 | 63-63.2 | 13 | 38 | 64/68 |
PG thread type
| Model | Thread AG | Cable Range (mm) | Thread O.D (mm) | Mounting Hole Diameter(mm) | Thread length GL(mm) | Bonding length (mm) | Spanner Size (mm) |
| PG7-NP | PG7 | 6.3-3 | 12.5 | 12.5-12.7 | 7 | 19 | 14 |
| PG9-NP | PG9 | 8-4 | 15.2 | 15.2-15.4 | 8 | 20 | 18 |
| PG11-NP | PG11 | 10-5 | 18.6 | 18.6-18.8 | 8 | 21 | 20/21 |
| PG13.5-NP | PG13.5 | 12-6 | 20.4 | 20.4-20.6 | 8 | 22 | 22 |
| PG16-NP | PG16 | 14-10 | 22.5 | 22.5-22.7 | 9 | 23 | 24 |
| PG19-NP | PG19 | 14-10 | 25 | 25-25.2 | 9 | 25 | 24/27 |
| PG21-NP | PG21 | 18-13 | 28.3 | 28.3-28.5 | 9 | 27 | 30/32 |
| PG25-NP | PG25 | 22-15 | 32 | 32-32.2 | 10 | 29 | 35 |
| PG29-NP | PG29 | 25-18 | 37 | 37-37.2 | 11 | 31 | 40 |
| PG36-NP | PG36 | 33-25 | 47 | 47-47.2 | 12 | 37 | 50 |
| PG42-NP | PG42 | 38-32 | 54 | 54-54.2 | 13 | 38 | 57 |
| PG48-NP | PG48 | 44-37 | 59.3 | 59.3-59.5 | 14 | 38 | 64 |
| PG63-NP | PG63 | 52-42 | 72 | 72-72.2 | 15 | 42 | 78 |
