Description
Thread length : Short thread is suitable for opening holes in thin boards or devices with internal threads, long thread is suitable for joining thick boards, and extended thread can be customized.

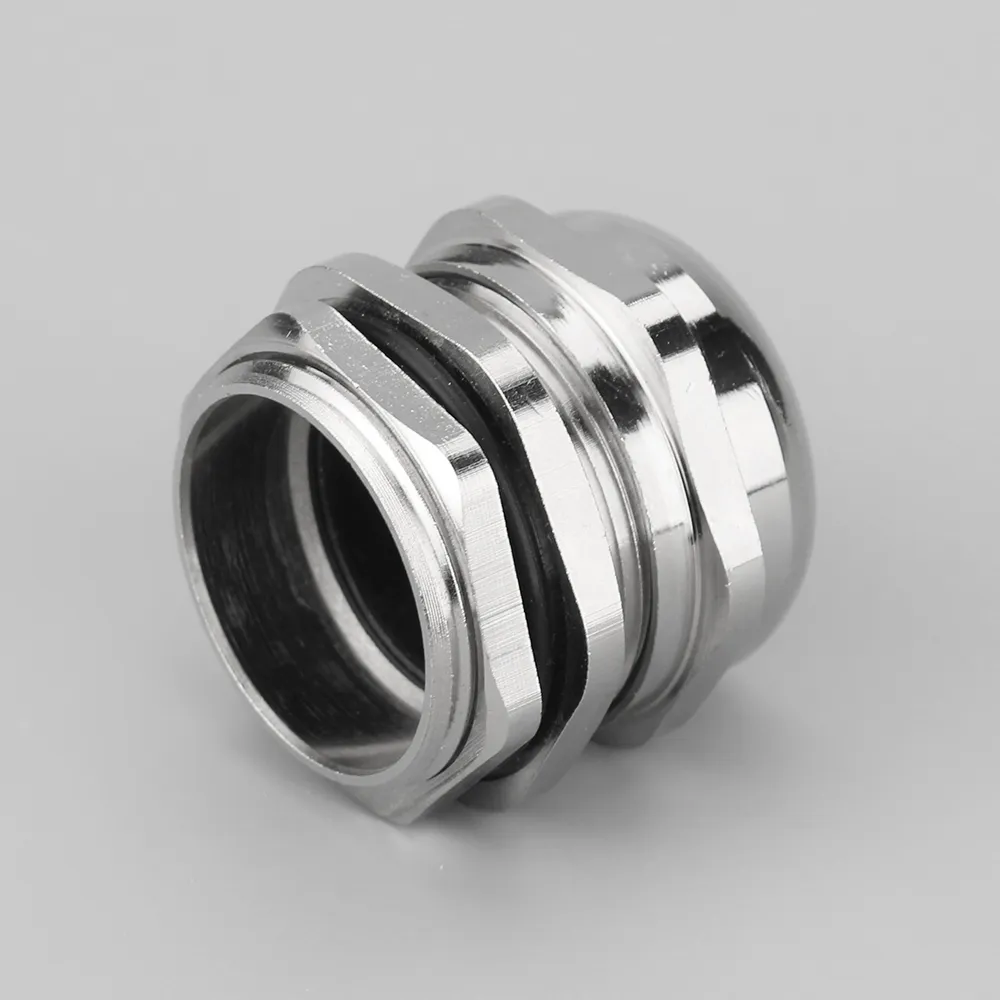

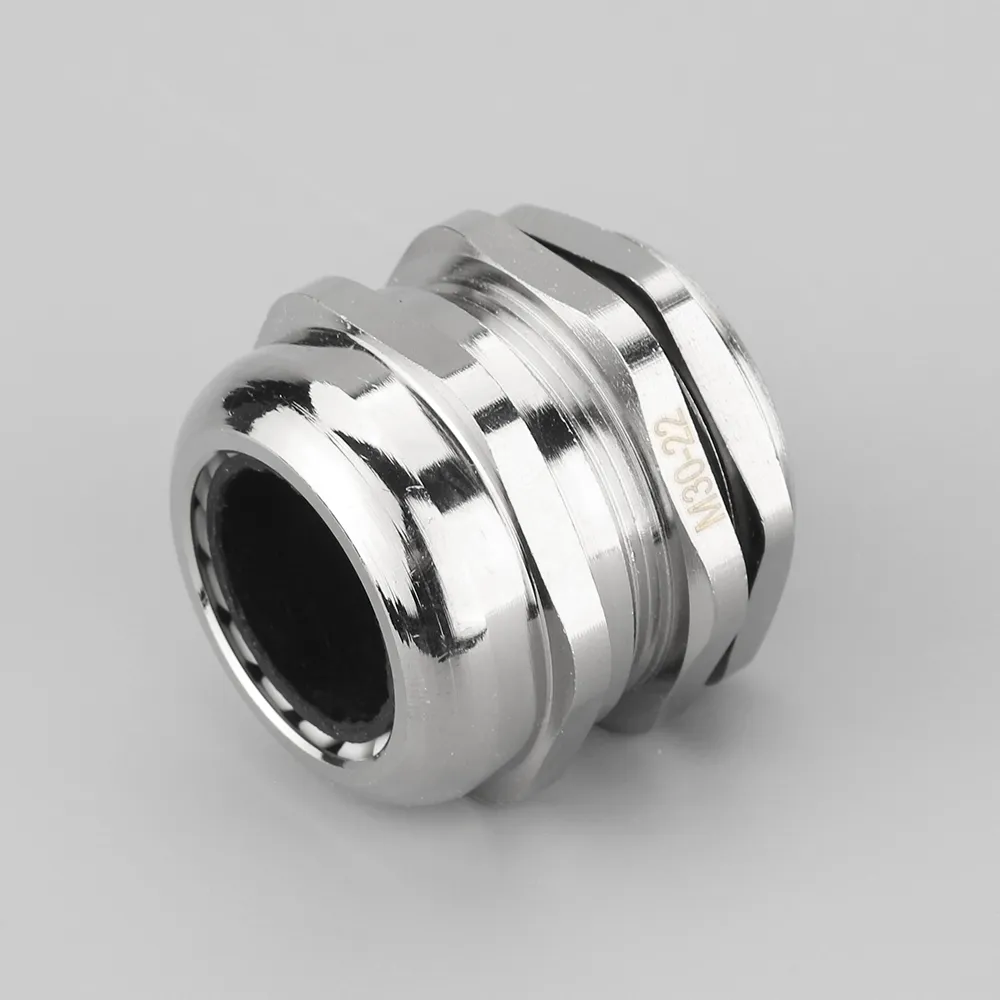

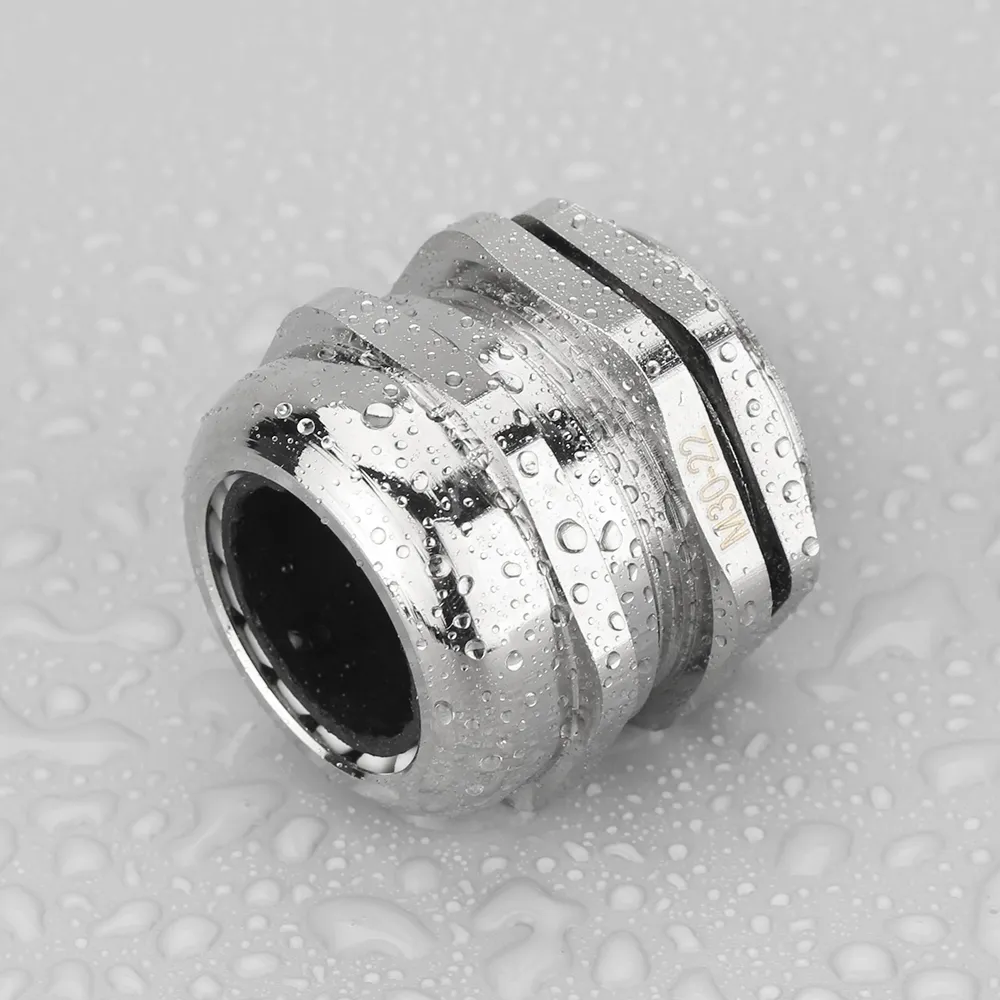

As a supporting product for cables, this metal cable gland can fix the cable by locking it at one end, and enter the device through the junction box at the other end, or select a threaded entry line according to the internal thread of the electrical equipment. The connector body is made of nickel-plated brass, the clamping parts are made of nylon plastic, and the seals and O-rings are made of nitrile rubber. The surface is smooth and bright, with good pressure resistance and toughness, no odor, and waterproof, rust-proof, corrosion-resistant, and excellent performance. Brass cable gland are tightly connected, have strong electrical conductivity, and are easy to assemble and save time.
The brass cable gland is selected mainly because it has excellent electrical conductivity and high mechanical strength, which can effectively ensure the safety and stability of cable connections. Brass material itself has good corrosion resistance. After nickel plating, its corrosion resistance, wear resistance and aesthetics are further improved, which can adapt to various complex and harsh environments and extend its service life. In addition, the brass cable gland has a tight structure and strong pressure resistance. It can withstand external pressure and mechanical shock, and is an ideal choice for industrial and outdoor cable gland.
Brass cable gland are relatively easy to install. Most products adopt “clip-on” or threaded locking structure, which can be fixed without complex tools, effectively saving installation time. During installation, just insert the cable into the connector and tighten the locking nut to achieve a firm connection and good sealing. Overall, the design of brass cable gland fully considers the convenience of on-site construction and is suitable for fast and efficient installation needs.
Parameter table
Metric thread type
| Model | Thread AG | Cable Range (mm) | Thread O.D (mm) | Mounting Hole Diameter(mm) | Thread length GL(mm) | Bonding length (mm) | Spanner Size (mm) |
| M14-NP | M14×1.5 | 8-4 | 14 | 14-14.2 | 7 | 19 | 17 |
| M16-NP | M16×1.5 | 8-4 | 16 | 16-16.2 | 8 | 20 | 18 |
| M18-NP | M18×1.5 | 10-5 | 18 | 18-18.2 | 8 | 21 | 20 |
| M20-NP | M20×1.5 | 12-6 | 20 | 20-20.2 | 8 | 22 | 22 |
| M22-NP | M22×1.5 | 14-10 | 22 | 22-22.2 | 8 | 23 | 24 |
| M24-NP | M24×1.5 | 14-10 | 24 | 24-24.2 | 9 | 25 | 24/27 |
| M25-NP | M25×1.5 | 14-10 | 25 | 25-25.2 | 9 | 25 | 24/27 |
| M28-NP | M28×1.5 | 18-13 | 28 | 28-28.2 | 9 | 27 | 30 |
| M30-NP | M30×1.5 | 18-13 | 30 | 30-30.2 | 9 | 29 | 30/32 |
| M32-NP | M32×1.5 | 22-15 | 32 | 32-32.2 | 10 | 29 | 35 |
| M33-NP | M33×1.5 | 22-15 | 33 | 33-33.2 | 10 | 29 | 35 |
| M36-NP | M36×1.5 | 25-18 | 36 | 36-36.2 | 10 | 31 | 40 |
| M37-NP | M37×1.5 | 25-18 | 37 | 37-37.2 | 10 | 31 | 40 |
| M40-NP | M40×1.5 | 25-18 | 40 | 40-40.2 | 11 | 31 | 40/45 |
| M42-NP | M42×1.5 | 30-22 | 42 | 42-42.2 | 11 | 35 | 45 |
| M48-NP | M48×1.5 | 33-25 | 48 | 48-48.2 | 11 | 37 | 50/52 |
| M50-NP | M50×1.5 | 38-32 | 50 | 50-50.2 | 12 | 37 | 57/55 |
| M63-NP | M63×1.5 | 44-37 | 63 | 63-63.2 | 13 | 38 | 64/68 |
PG thread type
| Model | Thread AG | Cable Range (mm) | Thread O.D (mm) | Mounting Hole Diameter(mm) | Thread length GL(mm) | Bonding length (mm) | Spanner Size (mm) |
| PG7-NP | PG7 | 6.3-3 | 12.5 | 12.5-12.7 | 7 | 19 | 14 |
| PG9-NP | PG9 | 8-4 | 15.2 | 15.2-15.4 | 8 | 20 | 18 |
| PG11-NP | PG11 | 10-5 | 18.6 | 18.6-18.8 | 8 | 21 | 20/21 |
| PG13.5-NP | PG13.5 | 12-6 | 20.4 | 20.4-20.6 | 8 | 22 | 22 |
| PG16-NP | PG16 | 14-10 | 22.5 | 22.5-22.7 | 9 | 23 | 24 |
| PG19-NP | PG19 | 14-10 | 25 | 25-25.2 | 9 | 25 | 24/27 |
| PG21-NP | PG21 | 18-13 | 28.3 | 28.3-28.5 | 9 | 27 | 30/32 |
| PG25-NP | PG25 | 22-15 | 32 | 32-32.2 | 10 | 29 | 35 |
| PG29-NP | PG29 | 25-18 | 37 | 37-37.2 | 11 | 31 | 40 |
| PG36-NP | PG36 | 33-25 | 47 | 47-47.2 | 12 | 37 | 50 |
| PG42-NP | PG42 | 38-32 | 54 | 54-54.2 | 13 | 38 | 57 |
| PG48-NP | PG48 | 44-37 | 59.3 | 59.3-59.5 | 14 | 38 | 64 |
| PG63-NP | PG63 | 52-42 | 72 | 72-72.2 | 15 | 42 | 78 |
